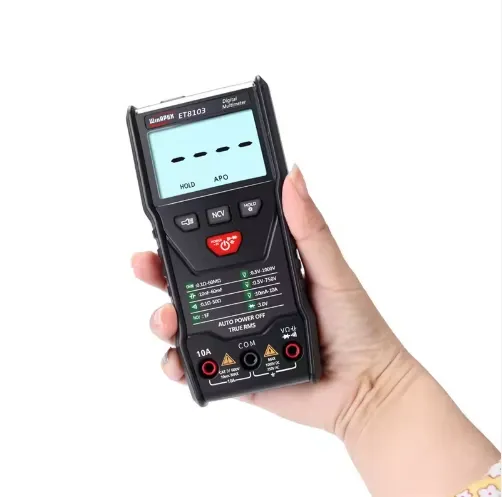

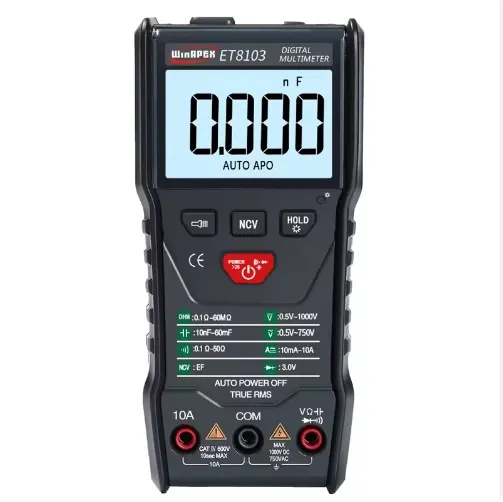

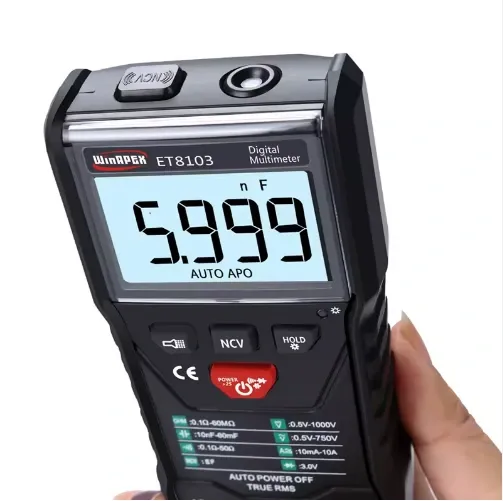

Winapex Et8103 Lcd Auto Measure Digital Multimeter 6000 Counts

Product Overview

The Winapex ET8103 is a smart, auto-ranging digital multimeter designed for accurate and easy electrical measurements. It features a 6000-count LCD display and True RMS technology, making it reliable for both professional and home use.

Key Features

• 6000 Counts LCD Display – Clear and precise readings
• Auto Measure (Smart Mode) – Automatically detects measurement type
• True RMS – Accurate readings even with unstable AC signals
• NCV (Non-Contact Voltage Detection) – Detect voltage without touching wires
• Backlight + Flashlight – Convenient for low-light environments
• Data Hold Function – Easily freeze readings
• Auto Power Off – Saves battery life

Measurement Capabilities

• DC Voltage: Up to 1000V
• AC Voltage: Up to 750V
• Current (AC/DC): Up to 10A
• Resistance: Up to 60MΩ
• Capacitance: Up to 60mF

Design & Build

• Compact and lightweight (~199g)
• Built-in kickstand for hands-free use
• Durable, shock-resistant body

Package Includes

• Winapex ET8103 Multimeter
• Test leads
• User manual

Ideal For

• Electricians and technicians
• DIY electronics users
• Repair work (TVs, fridges, inverters, etc.)
• Engineering students
