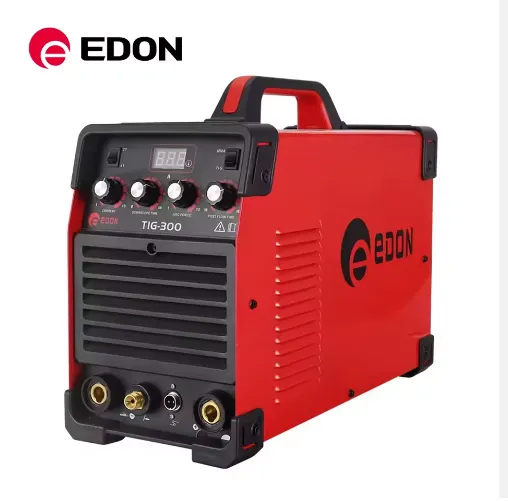

Edon TIG Welding Machine |TIG-300

General Overview

The Edon TIG-300 is a high-performance industrial inverter welding machine designed for both TIG (Tungsten Inert Gas) and MMA (Stick) welding. It is built for heavy-duty applications, offering strong arc stability, precision control, and durability in demanding environments such as workshops, construction sites, and fabrication industries.

Electrical Specifications

• Input Voltage: 380V ±15%
• Phase: 3-Phase
• Frequency: 50 / 60 Hz
• Rated Input Capacity: Approx. 8–10 kVA
• Power Factor: ≥ 0.93
• Efficiency: ≥ 85%

➡️ This ensures low energy loss and stable operation even under heavy loads.

Output Performance

• Maximum Output Current: 300 Amps

• Current Adjustment Range:

  • TIG: 10 – 300A
  • MMA: 10 – 300A
• No-Load Voltage: ~65 – 70V

• Duty Cycle:

  • 35% at 300A
  • 60% at lower currents

➡️ Suitable for continuous industrial welding with proper cooling intervals.

Technology & Design

• Inverter Technology: Advanced IGBT modules
• Arc Starting: High-Frequency (HF) start (non-contact ignition)

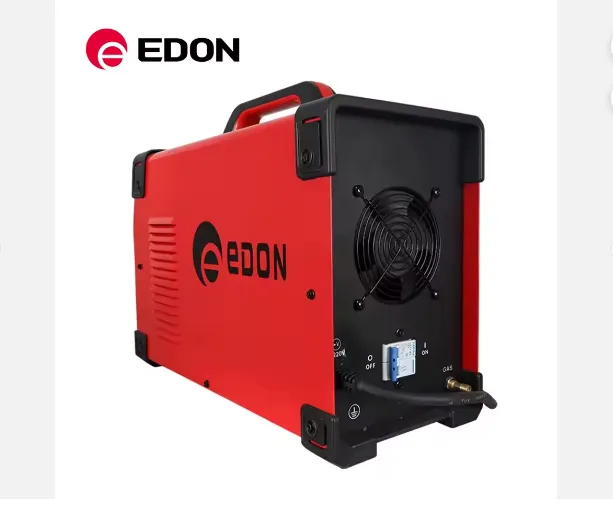

• Cooling System: Forced air cooling (fan-cooled)

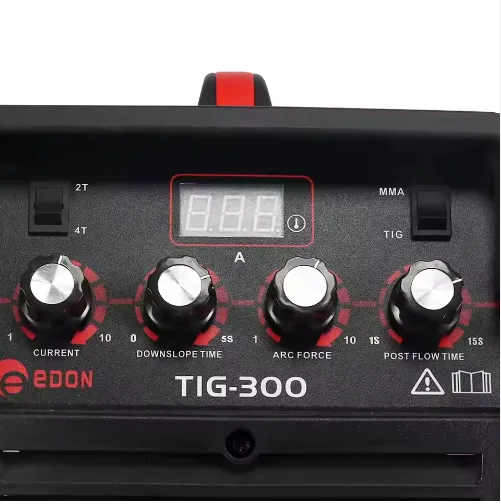

• Control Panel: Analog knobs for current adjustment
• Display: Digital/LED (depending on model version)

➡️ IGBT technology provides smooth arc, reduced spatter, and energy efficiency.

Welding Capabilities

🔹 TIG Welding

• Clean and precise welds

• Ideal for:

  • Stainless steel
  • Mild steel
  • Copper
  • Alloy metals

• Adjustable:

  • Gas pre-flow
  • Gas post-flow
  • Current control

🔹 MMA (Stick Welding)

• Compatible with various electrodes:

  • E6013
  • E7018
  • E6011
• Stable arc even with low-quality power supply

Protection & Safety Features

• Overheat Protection
• Overcurrent Protection
• Overvoltage Protection
• Thermal shutdown system
• Insulation Class: F
• Protection Class: IP21S

➡️ Designed for safe long-term use in industrial environments.

Typical Package Contents

(Varies slightly by supplier)

• TIG-300 Welding Machine
• TIG Torch
• Electrode holder (MMA)
• Earth clamp
• Gas hose
• User manual

Physical Details

• Cooling Type: Air-cooled
• Machine Type: Portable industrial unit
• Build: Heavy-duty metal casing
• Weight: Approx. 20–30 kg

Applications

• Metal fabrication workshops
• Construction projects
• Automotive repair
• Industrial maintenance
• Stainless steel fabrication
